Name: 7kW Smart Portable EV Car Charger with 5m Cable IP67 CE Certified
Brand: Chengdu Honors Technology Co.,Ltd
SKU: EVA07B
Price: 217.00 USD
Availability: InStock

Наименование марки:	ANS
Номер модели:	EVA07B
МОК:	1
Подробная информация об упаковке:	15.7153.15 (внутри)
Условия оплаты:	L/C, T/T, Western Union

Подробная информация

Характер продукции

Подробная информация

Место происхождения:

КИТАЙ

Сертификация:

Название продукта:

портативный заряжатель автомобиля ev

Оцененный ток::

32а

Номинальная частота:

50 Гц/60 Гц

Кабель для зарядки:

5 м

Stardard:

EN 61851-1: 2017/EN 62196-2: 62752:2017 2017/EN

Цвет кабеля:

Чернота или изготовление на заказ

Защита:

IP67

Сертификация:

Поставка способности:

100000 шт/месяц

Характер продукции

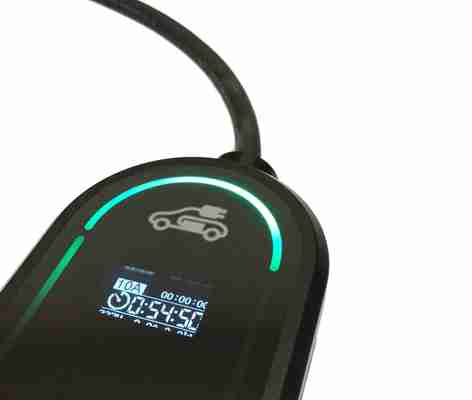

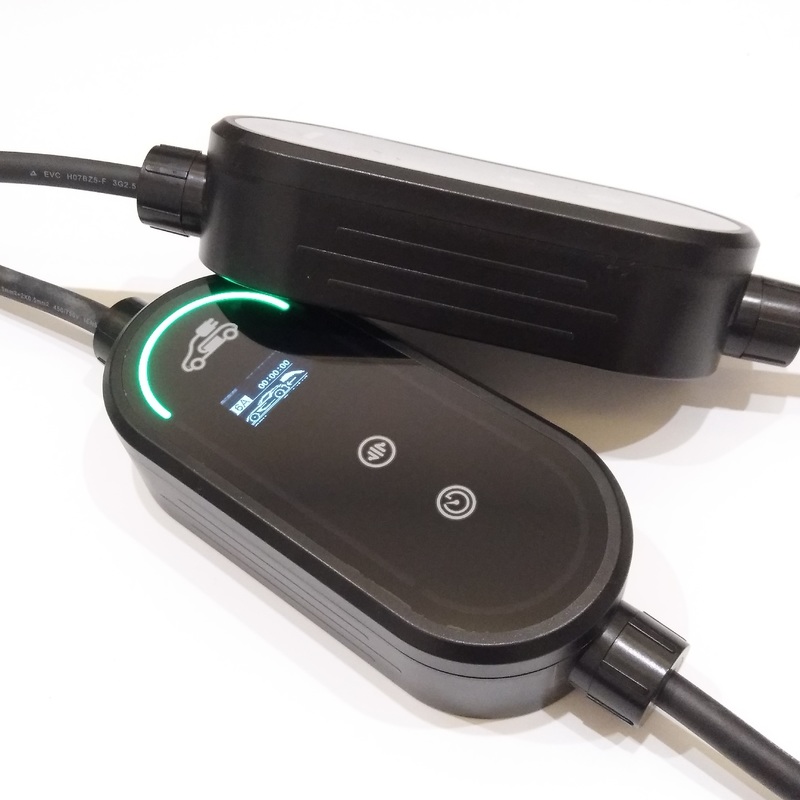

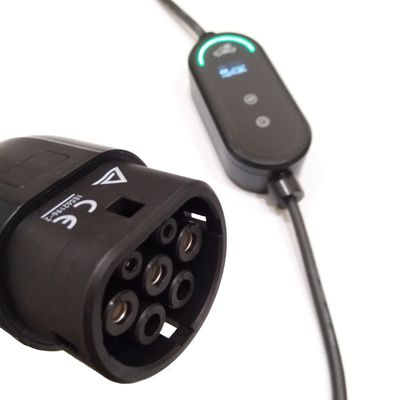

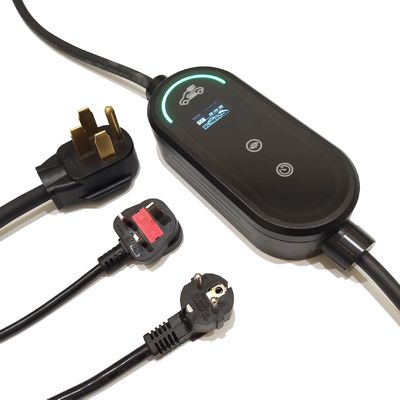

7kW Smart Portable EV Car Charger with 5m Cable IP67 CE Certified

Product Description

Experience the perfect balance of power and portability with the EVA07B 7.4kW portable EV charger. Designed for faster home charging and greater flexibility, it features:

Adjustable Current: Precisely control output up to 32A, allowing safe connection to a wider range of power sources, including dedicated home charging points.
Delay Charging Setting: Leverage time-of-use electricity rates efficiently, ensuring your vehicle is ready by morning while minimizing costs.
LED Light & Touch Key: Monitor charging status at a glance and control settings effortlessly with a modern touch interface.
Built-in RCD Type B: Guarantees superior safety for both user and vehicle, meeting the stringent requirements of higher-power charging.

This model is the go-to choice for EV owners seeking a powerful yet portable charging solution.

Specificaiton

Product Model EVA07b
Input/Output voltage	AC 110V/230V
Input frequency	50/60Hz
Max.output power	1 - Phase up to 7.4kW(@230V 32A)
Max.output current	32A for 1 - Phase
Standard	IEC 62752:2016/COR1:2019
Protection
Certificate	CE
Over voltage protection	Yes
Under voltage protection	Yes
Over load protection	Yes
Short circuit protection	Yes
Leakage protection	Yes
Over - temp protection	Yes
Lightning protection	Yes
Function and Accessory
LED indicators	Yes
OLED screen	Yes
RCD	Type B
Current adjustment	Yes
Delay charging adjustment	Yes
Ethernet/WIFI/4G/Bluetooth	No
Working environment
Protection degree	IP 67
Operation temperature	-30℃ - 60℃
Relative humidity	≤95%RH
Operating elevation limit	≤2000m
Cooling	Natural air cooling
Standby power consumption	<0.5W
Mechanical parameters
Charging cable	5m (Standard configuration)
Control box	H×W×D = 200mm×90mm×52mm
Weight	≤2.9kg
Colour&Material	Black;Tempered Glass,PC

Features

LED Display:

1. Charging Temperature

2. Charging Current

3. Charging Voltage

4. Energy Charged in KW/h

5. Charged time.

6.Set Current

7. Charging speed in KW

7kW Smart Portable EV Car Charger with 5m Cable IP67 CE Certified 0

7kW Smart Portable EV Car Charger with 5m Cable IP67 CE Certified 1

LED Indicators

7kW Smart Portable EV Car Charger with 5m Cable IP67 CE Certified 2

Control Box Function:

1. Leakage protection

2. Over-voltage or Low-voltage protection

3. Over-load protection

4. Lightning protection

5. Over-heat protection

6. Change current: 8A 10A 13A 16A

How to install

7kW Smart Portable EV Car Charger with 5m Cable IP67 CE Certified 3

Step 1: Put the wall bracket in a proper position on the wall, mark theposition of the top two screw holes on the wall using a pencil.

Step 2: Put down the wall bracket and drill the holes just marked. insertthe expansion plugs and fix the wall bracket to the wall usingself-tapping

screws.

Step 3: First insert the device into the upper mounting hole of the wallbracket. Then into the round hole of the bottom bracket andfix it on the wall bracket using combination screws.

Installation cases

Packaging

Our Certification

Exhibition
7kW Smart Portable EV Car Charger with 5m Cable IP67 CE Certified 7

Visits from Various Countries (looking forward to your arrival)

7kW Smart Portable EV Car Charger with 5m Cable IP67 CE Certified 8
