3 Phase 11kW Portable EV Charger with 5m Cable IP67

Наименование марки:	ANS
Номер модели:	EVA11B
МОК:	1
Подробная информация об упаковке:	15.7153.15 (внутри)
Условия оплаты:	L/C, T/T, Western Union

Подробная информация

Характер продукции

Подробная информация

Место происхождения:

Китай

Сертификация:

Название продукта:

3 фазы 11 кВт портативного зарядного устройства EV

портативный заряжатель ev

weiht:

3,2 кг

Номинальная частота:

50 Гц/60 Гц

Кабель для зарядки:

Цвет кабеля:

Чернота или изготовление на заказ

Защита:

Сертификация:

Поставка способности:

100000 шт/месяц

Выделить:

11kw portable EV charger

3 phase home EV charger

CE certified portable EV charger

Характер продукции

3 Phase 11kw Portable Home Ev Charger With CE Certification

Product Description

Meet the EVA11B—a powerful 11kW portable EV charger engineered for high-performance electric vehicles and 3 phase power systems.

Operating at 400V AC with a maximum output of 11kW , this charger delivers faster charging speeds ideal for EVs with larger batteries. It complies with IEC 62752:2016/COR1:2019 and carries CE certification, ensuring top-tier safety and compatibility across European markets.

The EVA11B integrates full protection mechanisms including over/under voltage, overload, short circuit, leakage, over-temperature, and lightning protection, plus a built-in Type B RCD for maximum safety. Despite its high power, it remains portable at just 3.2kg and features a compact, rugged design with an IP67 rating, performing reliably in temperatures from -30°C to 60°C. With an intuitive OLED screen, adjustable current, delay charging, and a 5-meter cable, the EVA11B brings professional-grade charging to your fingertips.

Key Advantage

Adjustable current

Delay charging setting

LED Light and Touch Key

Built-in RCD type B

Specificaiton

Product Model EVA11B
Input/Output voltage	AC 400V
Input frequency	50/60Hz
Max.output power	3-Phase up to 11kW(@400V 16A)
Max.output current	16A for 3- Phase
Standard	IEC 62752:2016/COR1:2019
Protection
Certificate	CE
Over voltage protection	Yes
Under voltage protection	Yes
Over load protection	Yes
Short circuit protection	Yes
Leakage protection	Yes
Over - temp protection	Yes
Lightning protection	Yes
Function and Accessory
LED indicators	Yes
OLED screen	Yes
RCD	Type B
Current adjustment	Yes
Delay charging adjustment	Yes
Ethernet/WIFI/4G/Bluetooth	No
Working environment
Protection degree	IP 67
Operation temperature	-30℃ - 60℃
Relative humidity	≤95%RH
Operating elevation limit	≤2000m
Cooling	Natural air cooling
Standby power consumption	<0.5W
Mechanical parameters
Charging cable	5m (Standard configuration)
Control box	H×W×D = 200mm×90mm×52mm
Weight	≤3.2kg
Colour&Material	Black;Tempered Glass,PC

Features

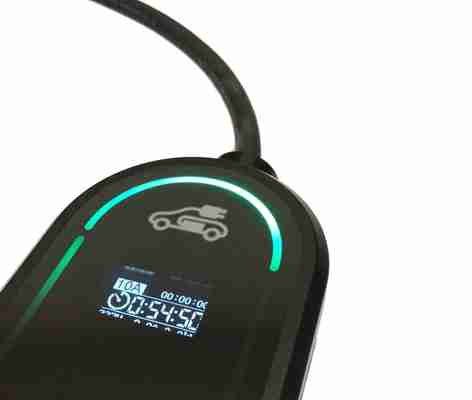

LED Display:

1. Charging Temperature

2. Charging Current

3. Charging Voltage

4. Energy Charged in KW/h

5. Charged time.

6.Set Current

7. Charging speed in KW

3 Phase 11kW Portable EV Charger with 5m Cable IP67 0

3 Phase 11kW Portable EV Charger with 5m Cable IP67 1

LED Indicators

3 Phase 11kW Portable EV Charger with 5m Cable IP67 2

Control Box Function:

1. Leakage protection

2. Over-voltage or Low-voltage protection

3. Over-load protection

4. Lightning protection

5. Over-heat protection

6. Change current: 8A 10A 13A 16A

How to install

3 Phase 11kW Portable EV Charger with 5m Cable IP67 3

Step 1: Put the wall bracket in a proper position on the wall, mark theposition of the top two screw holes on the wall using a pencil.

Step 2: Put down the wall bracket and drill the holes just marked. insertthe expansion plugs and fix the wall bracket to the wall usingself-tapping

screws.

Step 3: First insert the device into the upper mounting hole of the wallbracket. Then into the round hole of the bottom bracket andfix it on the wall bracket using combination screws.

Packaging

Our Certification

Exhibition
3 Phase 11kW Portable EV Charger with 5m Cable IP67 6

Visits from Various Countries (looking forward to your arrival)

3 Phase 11kW Portable EV Charger with 5m Cable IP67 7
